The APEK system’s fired heater ensures that the energy sources are converted into usable heat. Combustion heats the thermal oil on the inside of the heater plant, which in turn supplies the energy supply base for all other plant parts.
With APEK mini, HTT has also launched a completely new performance class of heat generation. What used to be the reserve of large-scale systems, can now be realised with APEK mini in small systems from 300 kW. Here, the heat excess generated during the process heat generation is used to pre-heat the combustion air of the thermal oil heater. |
With our new air preheater system APEK, we remove valuable energy from the exhaust gas and use this to preheat the furnace. This saves fuel and protects the environment at the same time. HTT APEK mini always ensures a waste heat utilisation of 100%. This provides great profitability and thus a quick return on investment.
-
Energy generation from hot exhaust gases
-
Perfectly matched system components to achieve the best emission levels
-
Easy to retrofit
-
Short amortisation periods
-
Use of almost the entire generated heat
-
Efficiency increase up to 96%
-
Practical environmental protection
-
Can be used up to +400 °C and 21 bar
-
300 to 1,000 kW power range
-
Fired with gas, oil or dual fuel version
-
Modular system, which meets any demand with its basic design right up to the high-end solution
-
Best emission levels, meets your specification whilst achieving best efficiency rates
-
Complies with maximum film temperature as per DIN4754
-
Great modulation range up to 1:6
-

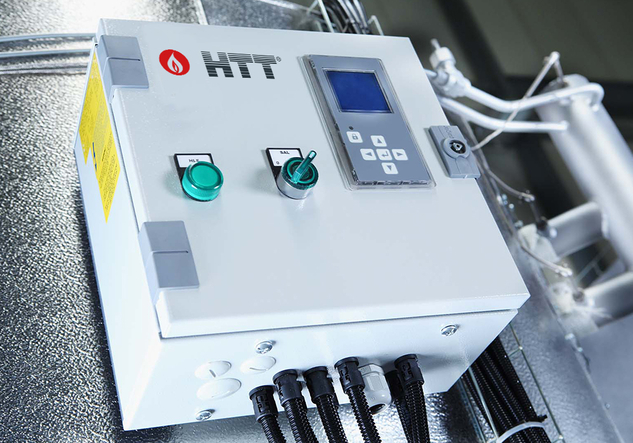

Latest burner technology with combined control system and Low-NOx burner head
|
 |
|
